◈High Channel Isolation
◈Low Insertion Loss
◈High Return Loss
◈High Stability and Reliability
Applications
◈Optical Fiber Amplifier
◈CATV Optical Fiber Link
◈Optical Fiber System testing
◈Dispersion Compensation

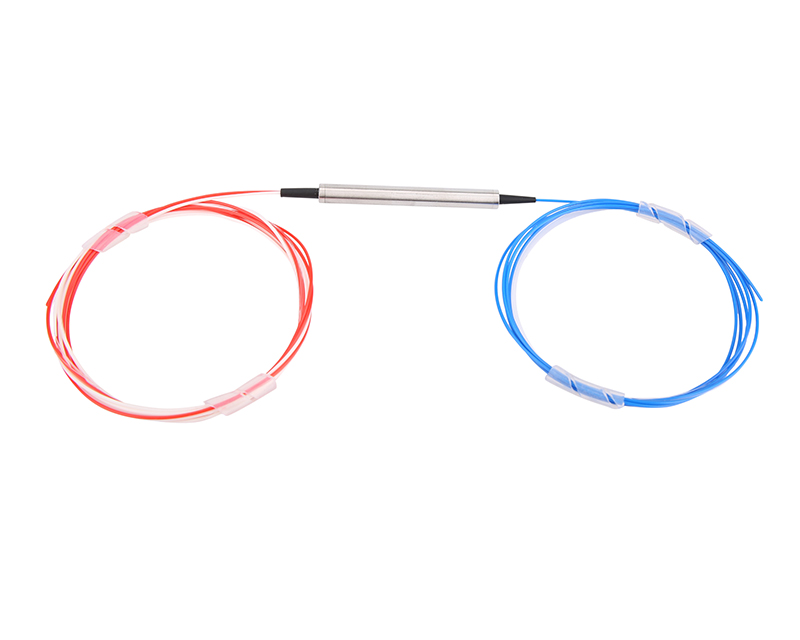

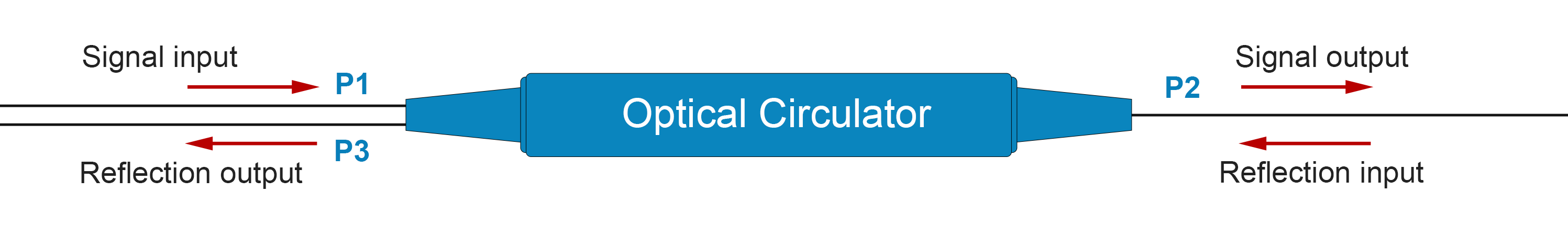

3 ports Polarization-Insensitive Optical Circulator
HJY's Optical Circulator is a non-reciprocal passive device that directs light signals sequentially between ports (e.g., Port 1→2, Port 2→3, Port 3→1). It utilizes Faraday rotation and birefringent crystals to enable bidirectional optical routing with minimal loss. Key features include low insertion loss, high isolation, and compact design, making it ideal for telecommunications, fiber sensing, and dense wavelength-division multiplexing (DWDM) systems.

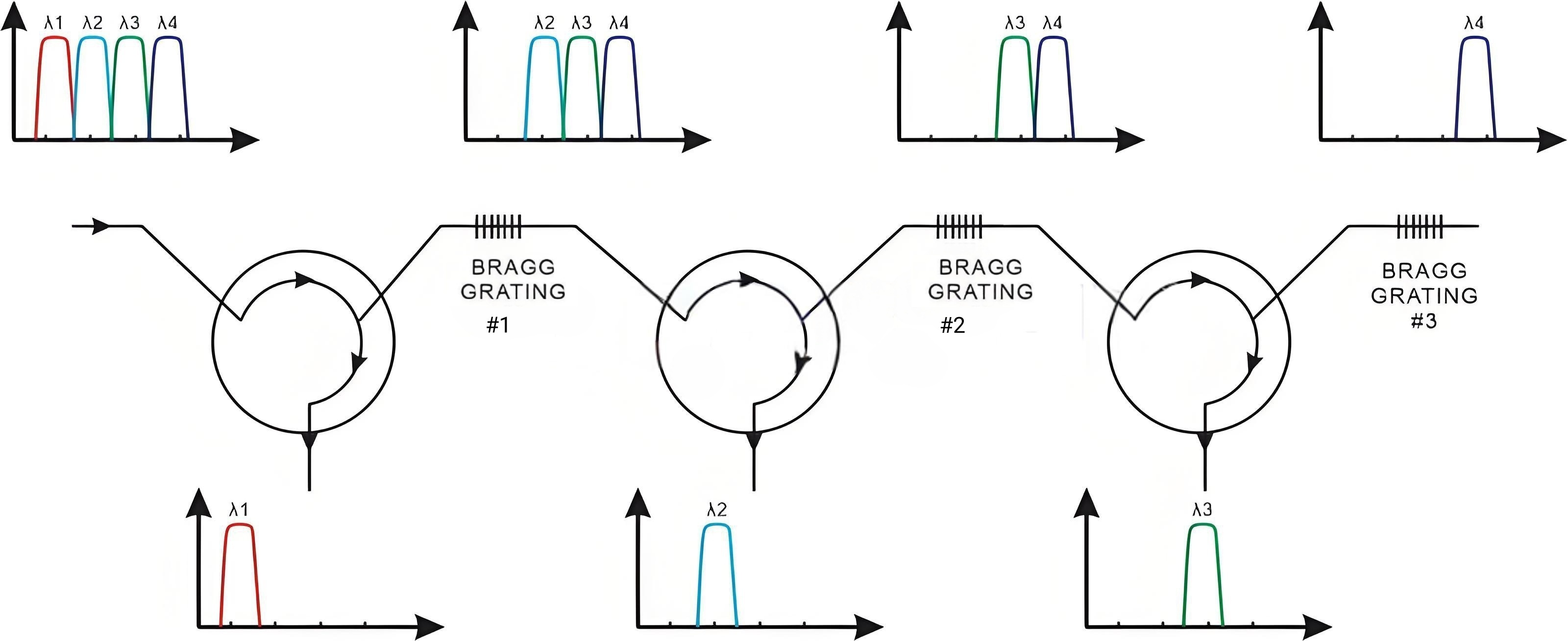

Application Diagram

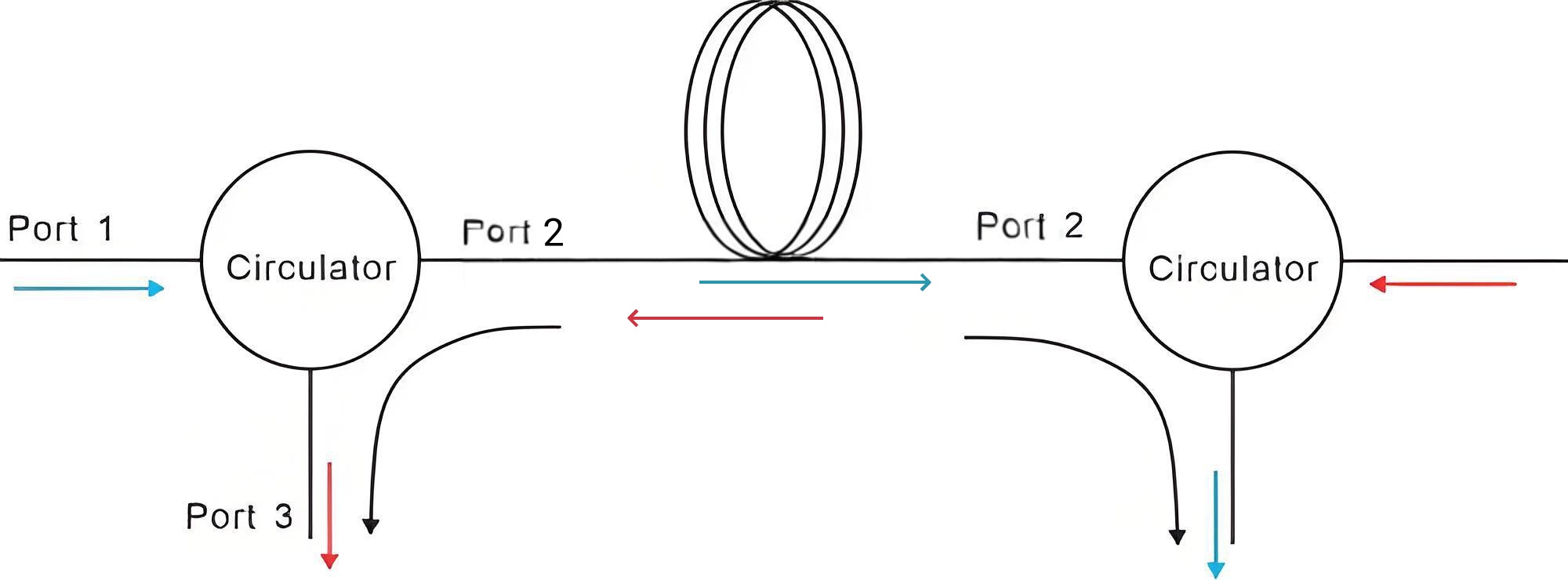

Circulator can be used to send optical signals through a single fiber in two directions. As the picture shows: A circulator is located at both ends of the fiber. Each circulator functions to add a signal in one direction while removing the signal in the other. see the example to the left.
Product Parameters
| Category | Types | Key Features |
| Port Configuration | 3-Port | Standard unidirectional flow (Port 1→2→3→1) |
| 4-Port | Extended routing for complex network topologies | |
| Application Grade | Telecommunication-Grade | High reliability for long-haul networks |
| Industrial-Grade | Ruggedized for harsh environments (e.g., sensing) |
| Parameter | 1310 | 1550 | C&L | 1610 | |
| Operation Wavelength (nm) | 1280~1340 | 1520~1580 | 1525~1610 | 1580~1660 | |
| Configuration | Port1 to Port 2; Port2 to Port3 | ||||
| Grade | P | ||||
| Insertion Loss(dB) | Typical | 0.6 | |||
| Maximum | 0.8 | ||||
| Channel Max. Isolation (dB) | 50 | ||||
| Channel Min. Isolation(dB) | 40 | ||||
| Directivity（ (dB) | 50 | ||||
| PDL (dB) | <0.15 | ||||
| PMD(ps) | <0.1 | ||||
| RL (dB) | >50 | ||||
| Bandwidth (nm) | +/-30 | ||||
| Max Operating Power (mW) | 500 | ||||
| Operating Temperature (℃) | 0~+70 | ||||
| Storage Temperature (℃) | -40~+85 | ||||
| Fiber type | Corning SMF-28e | ||||
| Dimension (mm) |
1. Φ5.5xL50 (bare fiber or 900um Loose tube) 2. L90xW20xH9.5 (2.0mm or 3.0mm Cable) |
||||
Order information
| Product | Wavelength | Grade | Pigtail Type | Fiber length | Connector |
| Circulator |
13=1310nm 15=1550nm |
P=P grade A=A grade |
0=250um 1=900um 2=2.0mm 3=3.0mm |
1=1m 2=1.5m 3=others |
0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=others |
