1x2 CWDM Devices are based on thin film filter technology. CWDM technology provides the flexibility to increase capacity of existing fiber infrastructure by enabling multiple channels (wavelengths) over the same fiber cabling. Each channel carries data independently from each other, allowing network designers to transport different data rates and protocols for different customers or applications.
1x2 CWDM Filter Devices 1270~1610nm

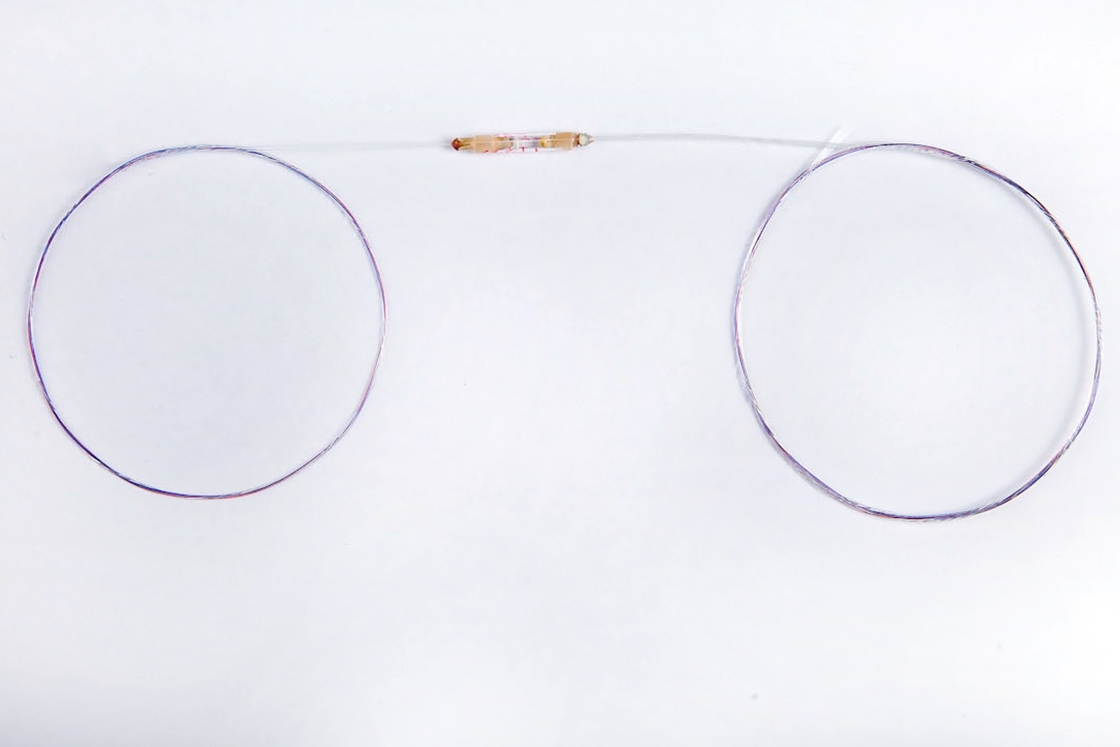

CWDM Filter 1x2 Fiber Optical Bare Cwdm Multiplexer With Steel Tube
HJY offers a full range of CWDM Mux-Demux and Optical Add Drop Multiplexer (OADM) units to suit all kinds applications and network solutions. Some most common ones are: Gigabit & 10G Ethernet, SDH/SONET, ATM, ESCON, Fibre Channel, FTTx and CATV.
1x2 CWDM Devices are based on thin film filter technology. CWDM technology provides the flexibility to increase capacity of existing fiber infrastructure by enabling multiple channels (wavelengths) over the same fiber cabling. Each channel carries data independently from each other, allowing network designers to transport different data rates and protocols for different customers or applications.
HJY’s 3 Port Coarse wavelength division multiplexer (CWDM Single Device) 1270nm, 1290nm, 1310nm, 1330nm, 1350nm, 1370nm, 1390nm, 1410nm, 1430nm, 1450nm, 1470nm, 1490nm, 1510nm, 1530nm, 1550nm, 1570nm, 1590nm, 1610nm or 1271nm, 1291nm, 1311nm, 1331nm, 1351nm, 1371nm, 1391nm, 1411nm, 1431nm, 1451nm, 1471nm, 1491nm, 1511nm, 1531nm, 1551nm, 1571nm, 1591nm, 1611nm in Optical Transport Networking System utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path.
1x2 CWDM Fitler Deivce Optical Components with small size in Glass tube or Stainless Steel Tube, Its will save much space for customer applications.
Specification:
| Parameter | Specification | |
| Channel Wavelength (nm) | 1260 ~ 1620 | |
| Center wavelength Accuracy (nm) | ±0.5 | |
| Channel Spacing (nm) | 20 | |
| Channel Passband (@-0.5dB bandwidth (nm) | ±7 or ±7.5nm | |
| Pass Channel Insertion Loss (dB) | ≤0.6 | |
| Reflection Channel Insertion Loss (dB) | ≤0.4 | |
| Channel Ripple (dB) | <0.3 | |
| Isolation (dB) | Adjacent | >30 |
| Non-adjacent | >40 | |
| Inertion Loss Temperature Sensitivity (dB/℃) | <0.005 | |
| Wavelength Temperature Shifting (nm/℃) | <0.002 | |
| Polarization Dependent Loss (dB) | <0.1 | |
| Polarization Mode Dispersion | <0.1 | |
| Directivity (dB) | >50 | |
| Return Loss (dB) | >45 | |
| Maximum Power Handling (mW) | 300 | |
| Opterating Temperature (℃) | -25~+75 | |
| Storage Temperature (℃) | -40~85 | |
| Package dimension (mm) | Steel Tube Φ5.5x34 | |
Note: 1. Customization is available.
2. pecified without connector, and add an additional 0.2dB loss per connector.
Package Type

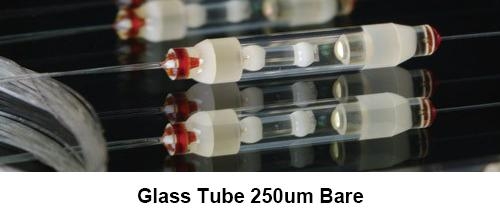

· Glass Tube Package for 250um bare fiber

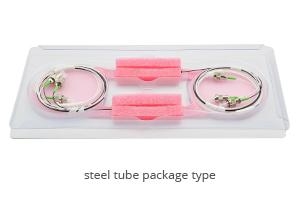

· Steel Tube package for 250um bare fiber and 900um fiber
Order information
P/N: CWDM-1x2-①-②-③-④-⑤-⑥
When you inquire, please provide the correct P/N number according to our ordering information, and attach the appropriate description would be better. If need any connector, we do not recommend choosing a 250μm bare fiber pigtail.
| ① | ② | ③ | ④ | ⑤ | ⑥ |
| Wavelength | R- Wavelength | Fiber Type | Pigtails Diameter | Fiber Length | Connector |
|
1270 nm 1290 nm … 1590 nm 1610 nm Or 1271 nm 1291 nm … 1591 nm 1611 nm |
A: 1270~1610 B: 1270~1450 C: 1470~1610 D: 1271~1611 E: 1271~1451 F: 1471~1611 |
1: SMF-28e X: Others |
25:250μm 90:900μm XX: Others |
05:0.5m 10:1.0m 15:1.5m XX: Others |
00:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC LP: LC/PC LA: LC/APC ST: ST/PC XX: Others |
Part Number Example: CWDM-1x2-1470-A-1-90-10-LP
Description: 1x2 CWDM Device(3 Ports),Center Wavelength 1270nm, Operating Wavelength 1270~1610nm,SMF-28e fiber, 0.9mm OD loose tube,1.0m length fiber pigtails, LC/PC connectors at all ports.
Ordering Information for Custom Parts:
If you need to customize other specifications, please provide detailed description for your requirement.
