CWDM technology uses ITU standard 20nm spacing between the wavelengths, from 1270nm to 1610nm. Our CWDM module has 2 to 18 channels. The central wavelength of each channel is specified to one of the ITU-T grid wavelengths. The CWDM module features wide channel bandwidth (13nm). Its isolation is greater than 30dB for adjacent channels, and greater than 40dB for non-adjacent channels. The module also has high thermal stability to ensure reliable performance under different environment.
2~18CH CWDM Multiplexer ABS Type
2-18CH CWDM MUX DEMUX ABS BOX MODULE
CWDM technology uses ITU standard 20nm spacing between the wavelengths, from 1270nm to 1610nm. Our CWDM module has 2 to 18 channels. The central wavelength of each channel is specified to one of the ITU-T grid wavelengths. The CWDM module features wide channel bandwidth (13nm). Its isolation is greater than 30dB for adjacent channels, and greater than 40dB for non-adjacent channels. The module also has high thermal stability to ensure reliable performance under different environment.
Features
· Low Insertion Loss
· High Channel Isolation
· Optical path epoxy free
· Excellent thermal stability and reliability
· Good channel-to-channel uniformity
· Wide Operating Wavelength: 1270nm-1610nm /(1261nm~1611nm)
· Wide Operating Temperature: -20 to +70℃
· Telcordia GR-1221 Compliance and RoHS Environmental Protection Standard
Applications
· CWDM Network
· Add/Drop System
· CATV Fiberoptic System
· Metro/Access Network
· Fiber Optical Amplifier
Product specification
| Channels | 1x4 | 1x8 | 1x16 | 1x18 |
| Insertion Loss | <1.5dB | <2.4dB | <4.8dB | <5.4dB |
| Wavelength Range | 1270-1610nm | Technology | TFF (Thin Film Filter) |
| Channel Spacing | 20nm | Passband Ripple | ≤0.5dB |
| Channel Passband | ITU±6.5nm | Channel Isolation |
Adjacent ≥30dB Non-adjacent ≥45dB |
| Polarization Dependent Loss | ≤0.2dB | Polarization Mode Dispersion | ≤0.1ps |
| Directivity | ≥50dB | Return Loss | ≥45dB |
| Optical Power Handling | ≤500mW | Temperature |
Operating -40 to 85°C Storage -40 to 85°C |
| Fiber Type | SMF-28e+ | Connector | LC/SC/FC or other |
| Net Weight | 0.25kg | Package dimensions |
100*80*10mm 120*80*18mm Or other |

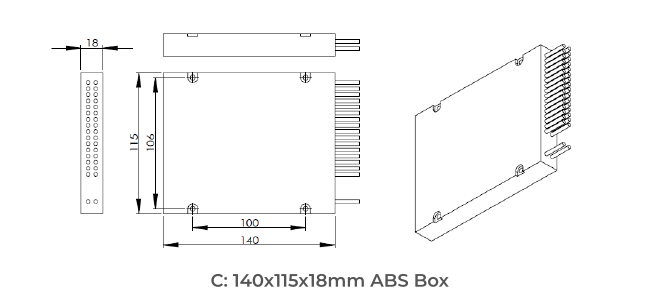

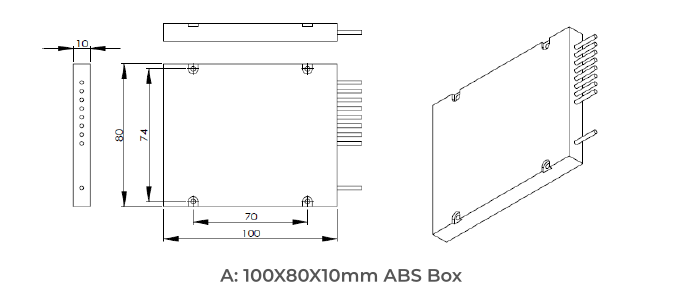

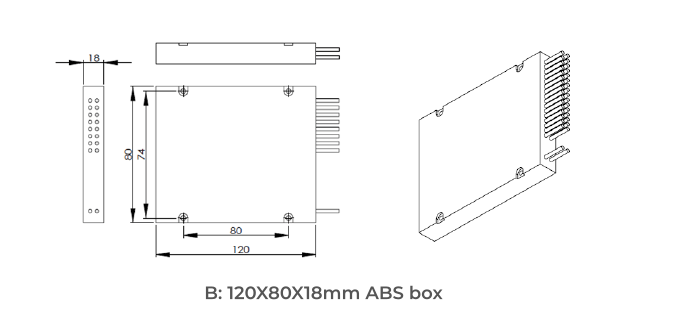

Package Dimension
Note:Fiber diameter can be 0.9mm/2.0mm/3.0mm. Fiber length is 1M or others. Connector can be LC/SC/FC, or others. If you want to order, please check with us first.
Order information
P/N: CWDM-ABS-XCH-①-②-③-④-⑤-⑥
When you inquire, please provide the correct P/N number according to our ordering information, and attach the appropriate description would be better. If need any connector, we do not recommend choosing a 250μm bare fiber pigtail.
| ① | ② | ③ | ④ | ⑤ | ⑥ |
| Wavelength | R- Wavelength | Fiber Type | Pigtails Diameter | Fiber Length | Connector |
|
1270 nm 1290 nm … 1590 nm 1610 nm Or 1271 nm 1291 nm … 1591 nm 1611 nm |
A: 1270~1610 B: 1270~1450 C: 1470~1610 D: 1271~1611 E: 1271~1451 F: 1471~1611 |
1: SMF-28e X: Others |
25:250μm 90:900μm XX: Others |
05:0.5m 10:1.0m 15:1.5m XX: Others |
00:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC LP: LC/PC LA: LC/APC ST: ST/PC XX: Others |
Part Number Example: CWDM-ABS-18CH-A-1-90-10-LP
Description: 18CH CWDM Multiplexer ABS box type, Wavelength 1270~1610nm,SMF-28e fiber, 0.9mm OD loose tube,1.0m length fiber pigtails, LC/PC connectors at all ports.
Ordering Information for Custom Parts:
If you need to customize other specifications, please provide detailed description for your requirement.
