Compact coarse wavelength division multiplexers (CCWDM Mux) is the mini version of CWDM Mux. Compared with traditional CWDM technology, CCWDM technology uses free-space optics platform which can significantly improve optical performance, in a package less than 1/4 the size of conventional CWDM modules. Main advantages of CCWDM Mux are high wavelength accuracy and stability, low insertion loss, high isolation and low PDL(polarization dependent loss). It's protocol and rates transparent supporting such applications as the CWDM system, PON networks, and CATV Links.
CCWDM Compact CWDM Mux/Demux Module
Compact coarse wavelength division multiplexers (CCWDM Mux) is the mini version of CWDM Mux. Compared with traditional CWDM technology, CCWDM technology uses free-space optics platform which can significantly improve optical performance, in a package less than 1/4 the size of conventional CWDM modules. Main advantages of CCWDM Mux are high wavelength accuracy and stability, low insertion loss, high isolation and low PDL(polarization dependent loss). It's protocol and rates transparent supporting such applications as the CWDM system, PON networks, and CATV Links.
HJY offers a compact CWDM module that provides bandwidth capacity expansion for future network growth in one of the small packages. Its compact size and unique carrier tray set it apart, and can be installed in a variety of field situations.
The compact CWDM is ultra low loss, super thermal stability, and excellent reliability, with smaller size compact design to save much space in the application. Applicable to CWDM system and optional special service
Unique Free-Space Technology
The CCWDM Mux adopts Free-Space technology, which uses light propagating in free space to wirelessly transmit data. Inside the device, adjacent signal channels are cascaded by parallel beam instead of the fiber. This saves a lot of space for package box, and the unique workmanship also helps CCWDM Mux Demux with low insertion loss.
Comparison between CCWDM and CWDM
Insertion Loss <2.6 dB
The insertion loss of CCWDM Mux is about half of the conventional CWDM Mux. This reduces the overall loss of the whole link, and leaves more choices for the design of the solution.
Compact Package Design
CCWDM Mux uses the parallel beam for cascading instead of the fiber, which saves significant space. The minimum dimension of CCWDM aluminum box module is less than the 1/4 size of minimum CWDM ABS pigtailed module.
Features
· Low Insertion Loss
· Compact size
· Ultra Stable and Highly Reliable
· Extended Operating Temperature Available
Applications
· Optical Add/Drop Multiplexing
· Telecom networks
· Metro networks
· Broadband Networks
Performance Specifications
| Parameter | 4 Ch | 4+UPG | 8 Ch | 8+UPG1 | 8+UPG2 | |
| Operating Wavelength (nm) | 1260~1620 | |||||
| Channel Wavelength (nm) | 1270,1290,...,1590,1610, or 1271,1291,...,1591,1611 | |||||
| UPG Port Wavelength Range(nm) | NA | TBD | NA | 1260~1360 | 1260~1457 | |
| Channel Spacing(nm) | 20 | |||||
| Channel Passband (nm) | CWL+/-6.5nm | |||||
| Insertion Loss(dB)* | ≤0.8 | ≤0.8 | ≤1.5 | ≤1.5 | ≤1.5 | |
| Channel Ripple(dB) | ≤0.3 | |||||
| Isolation(dB) | Adjacent | >30 | ||||
| Non-adjacent | >40 | |||||
| UPG Isolation(dB) | NA | >15 | NA | >15 | >15 | |
| Polarization Mode Dispersion(PS) | ≤0.2 | |||||
| Polarization Dependent Loss(dB) | ≤0.2 | |||||
| Directivity(dB) | >45 | |||||
| Return Loss（dB） | >45 | |||||
| Maximum Power Handling(mW) | 500 | |||||
| Operating Temperature(℃) | -5~+70 | |||||
| Storage Temperature(℃) | -40~85 | |||||
| Fiber Type | G657A1 | |||||
| Connector | TBD | |||||
| Package dimension(mm) | L55 x W35 x H8 or L44 x W25 x H6 | |||||
Order Information
| Configuration | Channel No. | Pigtail Type | Fiber length | Declension（mm） | Connector |
| CC=CCWDM |
40=4 Channel 41=4+UPG 80=8 Channel 81=8+UPG1 82=8+UPG2 …… |
0=250um 1=900um |
0=0.5m 1=1m 2=1.5m 3=others |
1= L55 x W35 xH8 2=L44 x W25 x H6 |
0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=others |

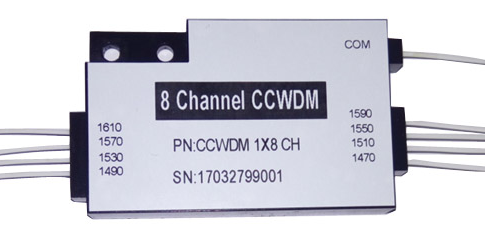

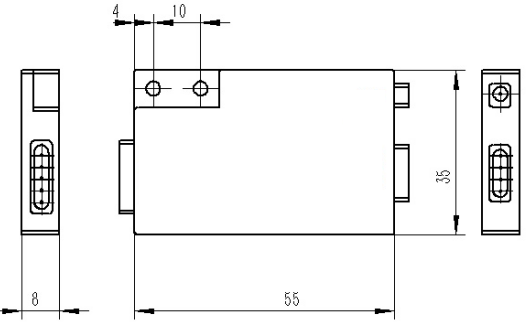

Type1:

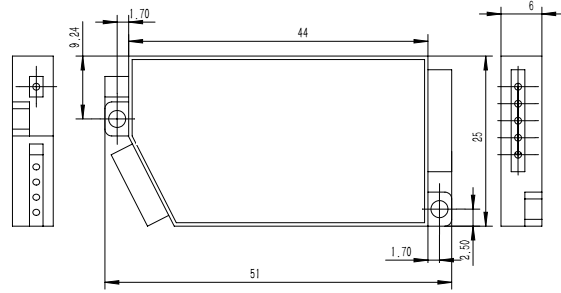

Type 2:
