Item Details
Features
◈High precision of reflectance at test wavelength
◈Low insertion loss at traffic wavelength
◈Easy to install
◈Exceptional reliability and environmental stability
◈Applicable for FTTH, FTTB, FTTC
◈Compatible with GPON, EPON, GEPON, 10GEPON, NGPON
Applications
◈Create high reflectance and wide working bandwidth at the termination of a PON without disturbing traffic
◈Test the reflectance from the central office
◈Check optical continuity of a subscriber when being added, or when troubleshooting

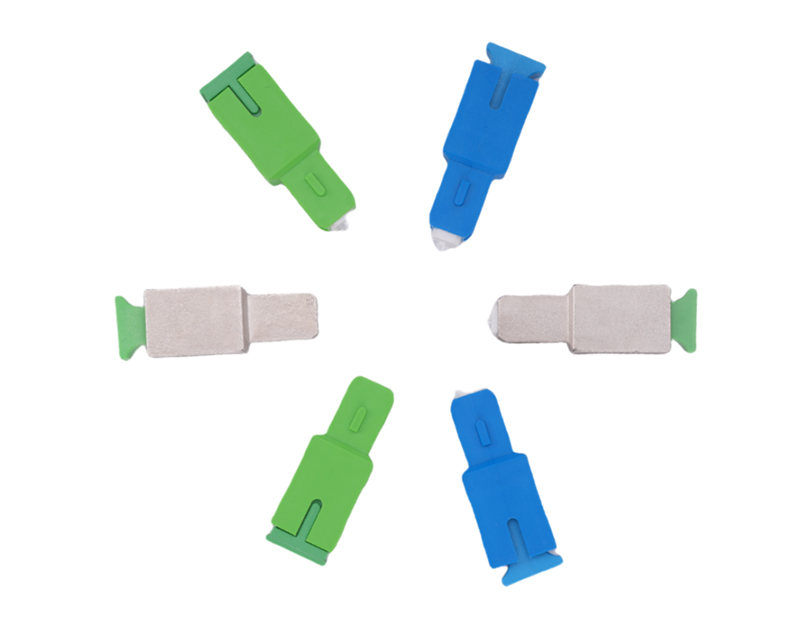

OTDR FBG Fiber Bragg Grating Reflector
FBG Reflector is a wavelength selective filter, which is usually installed at the front end of the ONU of the optical network to achieve accurate and fast detection of the end-to-end attenuation of the optical link.
OTDR FBG Reflector is based on Fiber Bragg Grating technology with wide bandwidth and low insertion loss to reflect OTDR test signal. When the optical measurement system generates a certain range of wavelength to a Passive Optical Network (PON) which can pass through the FBG, the FBG will reflect its own intrinsic reflection wavelength at 1644.5nm - 1655.5nm.
FBG Reflector (1550nm)
FBG Reflectors (1550nm), also known as FBG filters, are usually installed at the front end of optical network ONUs. Combined with OTDR equipment, they can realize point-to-point (PTP) or point-to-multipoint (PTMP) network monitoring of optical links. It can accurately and quickly reflect network anomalies.

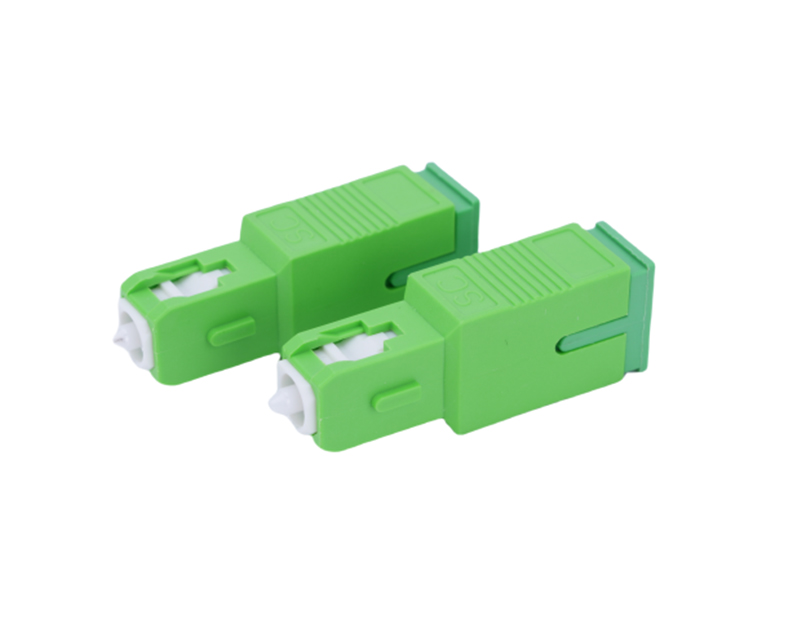

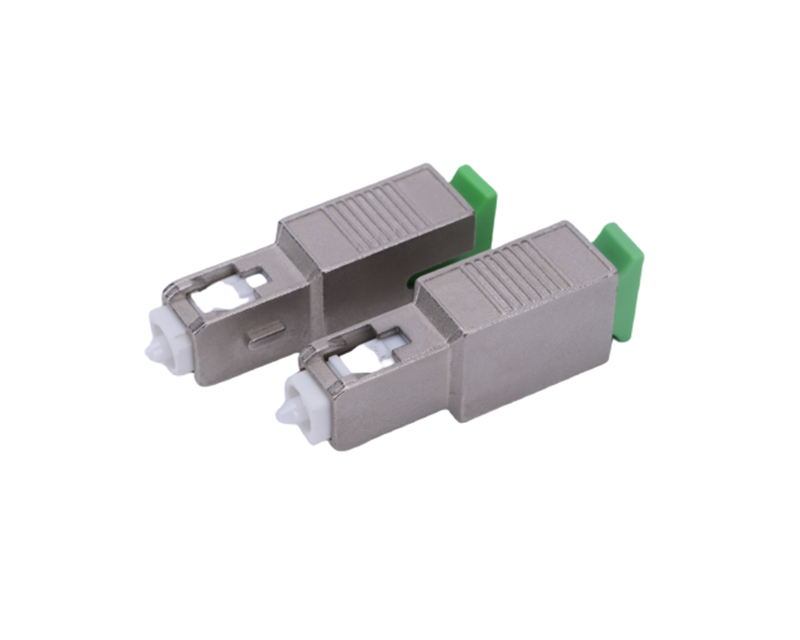

FBG Reflector (1650nm)
FBG Reflector (1650nm) utilizes the wavelength-selective properties of the Fiber Bragg Grating, and the FBG is embedded in the adapter. It can be easily installed in the front end of the optical network (ONU), and cooperate with the Optical Time Domain Reflector (OTDR) to quickly and accurately realize the fault detection of the optical network.
Pigtail Typed FBG Reflector

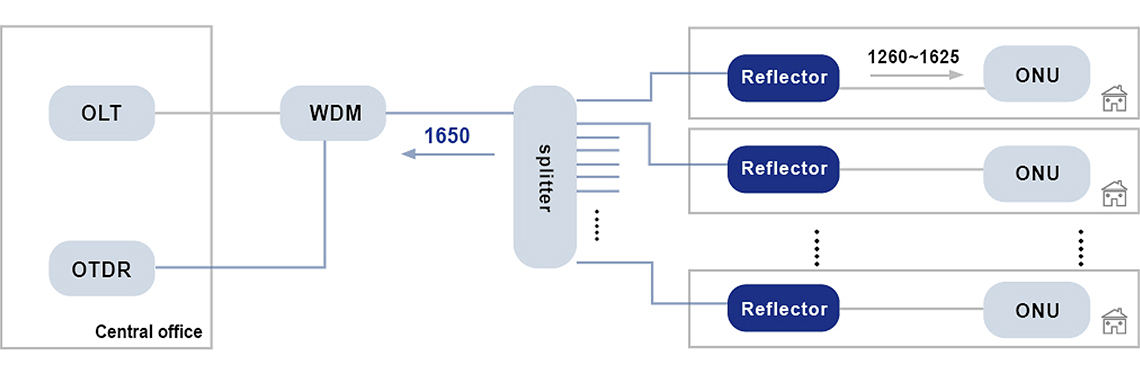

Application Diagram
Specification and Ordering Information:
| Product Type | HJY-FBG-R-1550-XX-XX*① | |
| Parameters | Minimum | Maximum |
| Optical Parameters | ||
| Pass band wavelength range (nm) | 1260 | 1625 |
| Reflect band wavelength range (nm) | 1644.5 | 1655.5 |
| Insertion Loss (1260nm - 1360nm) (dB)*② | - | 1.0 |
| Insertion Loss (1460nm - 1600nm) (dB) | - | 1.0 |
| Insertion Loss (1600nm - 1625nm) (dB) | - | 2.0 |
| Insertion Loss (Reflect Band) (dB) | 21 | - |
| Return Loss (1260nm - 1360nm) (dB) *③ | 35 | - |
| Return Loss (1460nm - 1580nm) (dB) | 35 | - |
| Return Loss (1580nm - 1620nm) (dB) | 30 | - |
| Return Loss (1620nm - 1625nm) (dB) | 20 | - |
| Return Loss (Reflect Band) (dB) | 0 | 1.0 |
| Polarization Dependent Loss (1260nm - 1600nm) (dB) | 0 | 0.6 |
| Ripple (Reflect Band) (dB) | 0 | 0.4 |
| Temperature Dependent Loss (1260nm - 1600nm) (dB) | 0 | 0.5 |
| Max Optical Power Handling (dBm) | 27 | |
| Plug Times | 500 | - |
| Connector | SC/APC Male & SC/APC Female | |
| Temperature Range | ||
| Storage Temperature (℃) | -40 | 85 |
| Operating Temperature (℃) | -25 | 65 |
| Relative Humidity (RH%) | 5 | 95 |
*①HJY-FBG-R-1550-XX-XX,the first XX means fibre type,the second XX means structure type
*②Insertion Loss (dB) = -10 log
*③Reture Loss (dB)=-10 log(Reflected Power/ Input Power) [dB]. To measure the return loss of reflect band, the light of 1650nm should be injected from the female side of reflector
